T2101
Floorplan 1
T2101
Six-unit townhouse plan featuring 2 bedroom residences offering approximately 1,001 to 1,171 square feet and one to one-and-a-half baths per unit. Attached one-car garages, individual entries, private rear patios or decks, and a combination of one- and two-level layouts strengthen resident appeal and development flexibility.
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
Designed as a six-unit townhouse plan, T2101 combines two-bedroom residences, attached one-car garages, and private outdoor areas within a cohesive two-story building. Two single-level end residences and four two-level interior units create a varied configuration while maintaining a consistent two-bedroom offering across the development. Unit sizes ranging from approximately 1,001 to 1,171 square feet position the plan for rental housing, attached residential development, or investment property applications seeking manageable footprints and resident-oriented features.

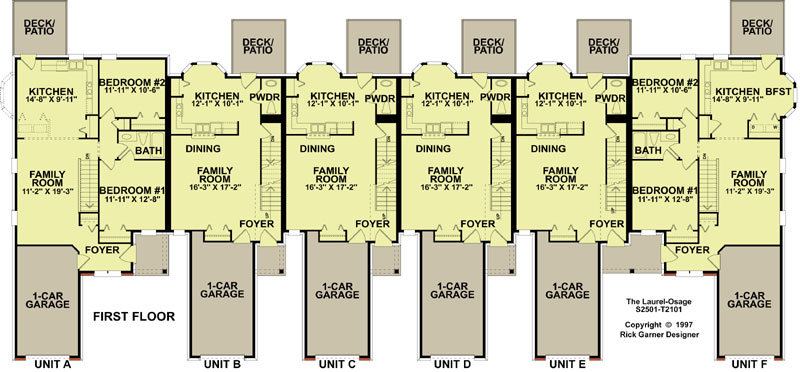

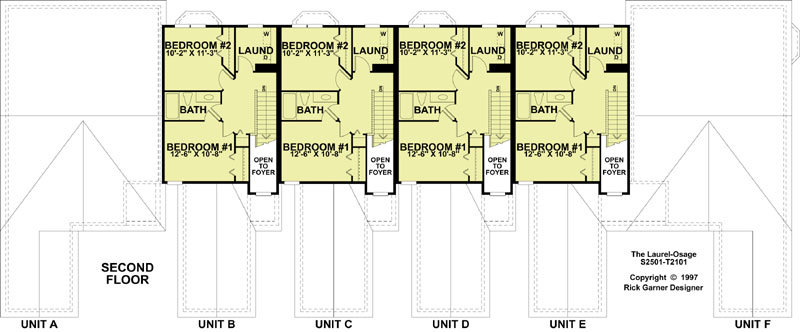

Individual entries establish a clear sense of arrival, while the interior townhouses organize living and dining functions on the main level and reserve the upper floor for bedrooms and laundry. The end residences consolidate daily living onto one level, broadening the plan’s potential appeal. Rear decks or patios extend each unit beyond its interior footprint, and attached garages strengthen privacy, convenience, and marketability. Balancing architectural continuity, practical circulation, and disciplined square-footage use, T2101 delivers developer-friendly residential design suited to builders, investors, and multifamily development teams.
Plan Highlights
- Six-unit townhouse building
- Two bedrooms per residence
- One to one-and-a-half baths per unit
- Approximately 1,001 to 1,171 square feet per residence
- 6,686 square feet of total living area across the building
- Two-story building combining one- and two-level unit layouts
- Attached one-car garage serving each residence
- Private deck or patio positioned at the rear of every unit
- Individual entries and clearly defined residential circulation
- 9-foot main-level ceiling height
- 140 feet 4 inches wide by 55 feet deep
- 6:12 roof pitch

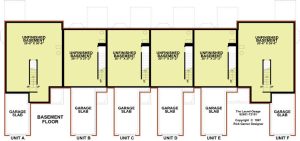

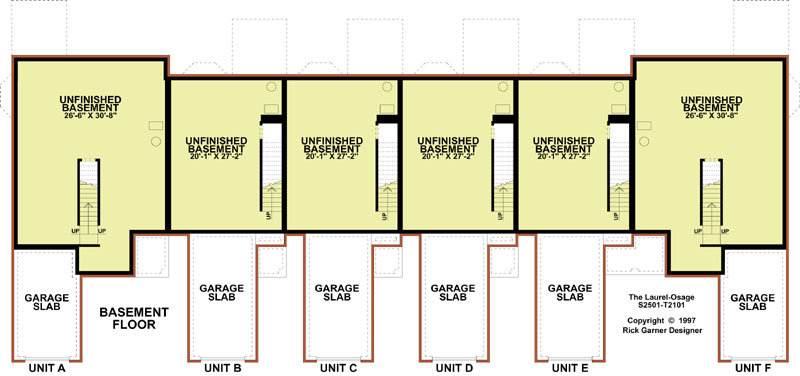

- slab or standard basement foundation options
Important Information
- Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.
- Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
| Designer Plan Number | T2101 |
|---|---|
| Bedrooms Per Unit | 2 |
| Bathrooms per Unit | 1.5 |
| Plan Width | 140 ' 4 " |
| Plan Depth | 55 ' 0 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Foundation Standard Basement | yes |
| Roof Pitch | 6 in 12 |
|---|---|
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 647 sq.ft |
| 2nd Floor Area | 524 sq.ft |
| Total Living Area | 1170 sq.ft |
| Total Plan Area | 6686 sq.ft |
| Garage Bays Per unit | 1 |
| Garage Type | Attached |
