T2202-C

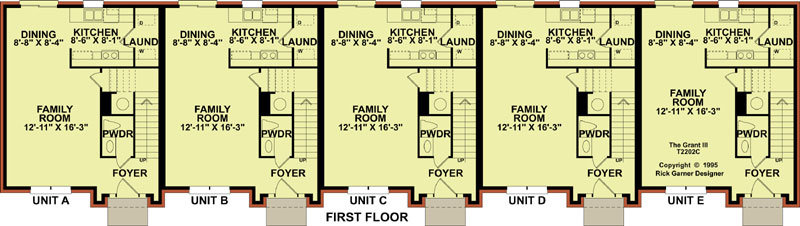

Floorplan 1
T2202-C
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
5 Unit Townhouse Design.
Notice: Single Use License Required Prior to Shipping.
*Ask about our Multifamily Developer Special Incentives.
Multi-Use License Available.
CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267
High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.
| Designer Plan Number | T2202-CT2202-C |
|---|---|
| Bedrooms Per Unit | 2 |
| Bathrooms per Unit | 2 |
| Plan Width | 109 ' 9 " |
| Plan Depth | 30 ' 7 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 10 in 12 |
|---|---|
| Building Floors | 2 |
| Unit Floors | 2 |
| First Floor Area | 576 sq.ft |
| 2nd Floor Area | 534 sq.ft |
| Total Living Area | 576 sq.ft |
| Total Plan Area | 5550 sq.ft |
