T2202E

T2202E

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$3,100.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

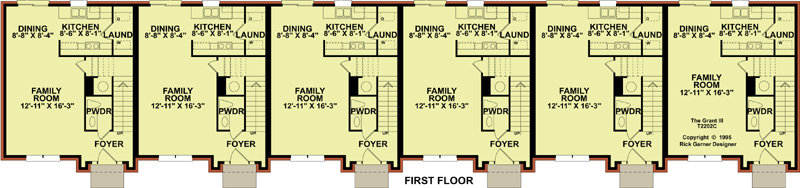

T2202E Floorplan 1

Description

6 Unit Townhouse featuring garage parking.

Notice: Single Use License Required Prior to Shipping.

*Ask about our Multifamily Developer Special Incentives.

Multi-Use License Available.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.

Designer Plan Number T2202ET2202E
Bedrooms Per Unit 2
Bathrooms per Unit 2.5
Plan Width 132 ' 0 "
Plan Depth 27 ' 7 "
Main Ceiling 9 ' 0 "
2nd Ceiling 8 ' 0 "
Foundation Standard Basement yes
Roof Pitch 12 in 12
Building Floors 2
Unit Floors 2
First Floor Area 576 sq.ft
2nd Floor Area 534 sq.ft
Total Living Area 576 sq.ft
Total Plan Area 6660 sq.ft
