T2205-B

T2205-B

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$3,300.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

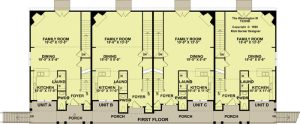

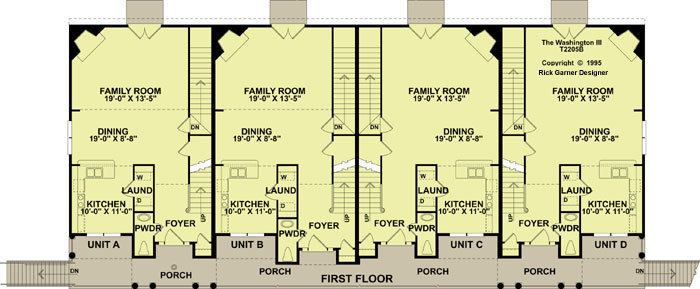

T2205-B Floorplan 1

Description

4 Unit Townhouse Design.

Notice: Single Use License Required Prior to Shipping.

*Ask about our Multifamily Developer Special Incentives.

Multi-Use License Available.

CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267

High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.

Designer Plan Number T2205-BT2205-B
Bedrooms Per Unit 3
Bathrooms per Unit 2
Plan Width 94 ' 3 "
Plan Depth 43 ' 4 "
Main Ceiling 10 ' 0 "
2nd Ceiling 0 ' 0 "

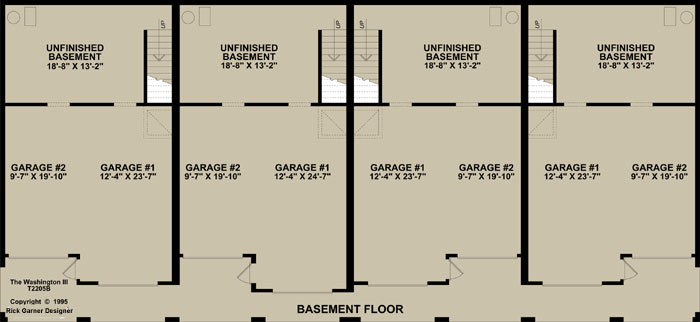

Foundation Standard Basement yes
Roof Pitch 7 in 12
2nd Roof Pitch 10 in 12
Building Floors 3
Unit Floors 2
First Floor Area 854 sq.ft

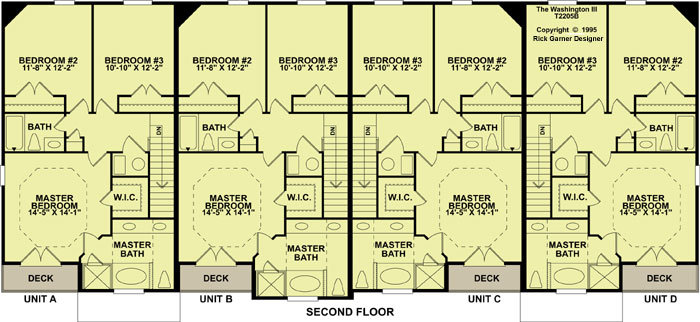

2nd Floor Area 863 sq.ft
Total Living Area 854 sq.ft
Total Plan Area 6868 sq.ft
Garage Bays Per unit 2
Garage Type Attached
