T2207-A
Floorplan 1
T2207-A
2 unit townhouse plan featuring 3 bedroom, 2.5-bath residences, attached one-car garages, private porches, and efficient two-story layout.
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description

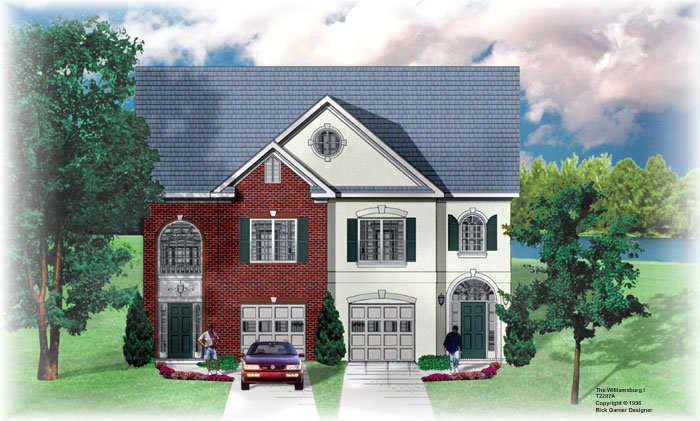

Balancing individual residential character and the efficiency of an attached format, this two-story townhouse plan presents a polished development opportunity for builders seeking substantial three-bedroom residences within a cohesive architectural composition. Each unit provides approximately 1,650 to 1,659 square feet, two-and-a-half baths, a private front entry, rear porch, and attached one-car garage. The mirrored arrangement gives both residences an equal sense of identity while supporting the repeatability and disciplined planning valued in multifamily development.

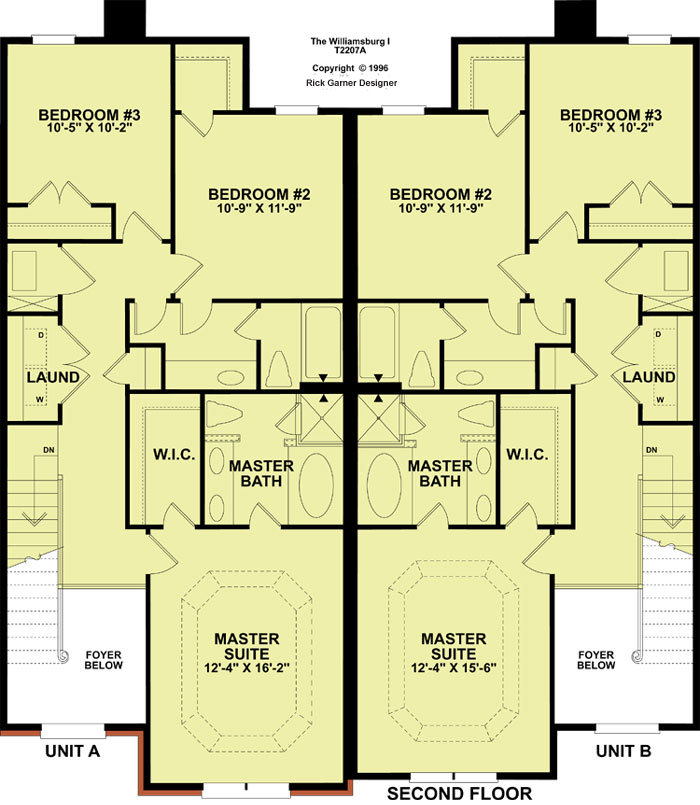

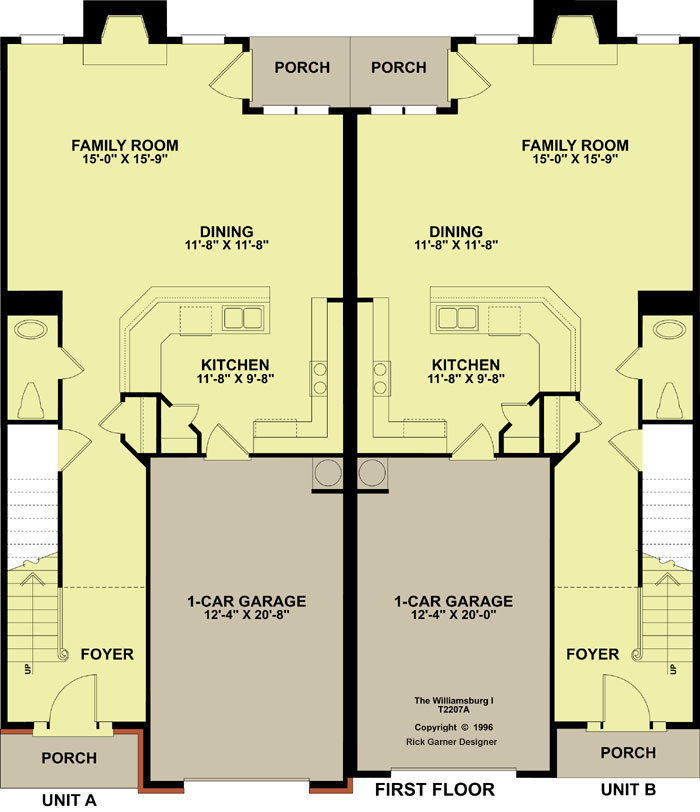

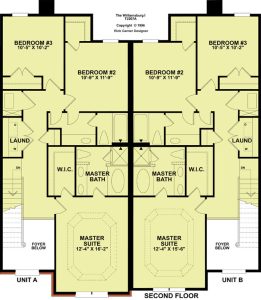

Inside, the main level is organized around a defined foyer, powder room, kitchen, dining area, and generously scaled family room, creating an intuitive progression from arrival to shared living spaces and outdoor access. All three bedrooms occupy the second floor, where the primary suite incorporates a private bath and walk-in closet while two secondary bedrooms share a hall bath. Dedicated upstairs laundry strengthens everyday convenience and keeps service functions close to the bedroom level. Planned on a slab foundation across a 44-foot-5-inch-wide by 50-foot-8-inch-deep footprint, the design combines practical circulation, efficient square-footage use, and resident-focused livability in a developer-friendly townhouse plan suited to attached residential development.
Plan Highlights
- Three bedrooms per unit
- Two full baths and one half bath per unit
- Private front entries and individual rear porches
- Second-floor laundry area in each unit
- 9′ main-level ceiling height
- Building dimensions: 44′- 5″ wide by 50′-8″ deep
- Primary roof pitch: 9:12
- Approximately 1,650 to 1,659 square feet per residence
- 3,309 square feet of total building area
- Attached one-car garage serving each residence
- Slab foundation
Important Information
Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.
Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
| Designer Plan Number | T2207-A |
|---|---|
| Bedrooms Per Unit | 3 |
| Bathrooms per Unit | 2 |
| Plan Width | 44 ' 5 " |
| Plan Depth | 50 ' 8 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 9 in 12 |
| Building Floors | 2 |
|---|---|
| Unit Floors | 2 |
| First Floor Area | 773 sq.ft |
| 2nd Floor Area | 877 sq.ft |
| Total Living Area | 1650 sq.ft |
| Total Plan Area | 3309 sq.ft |
| Garage Bays Per unit | 1 |
| Garage Type | Attached |
