T2208-B

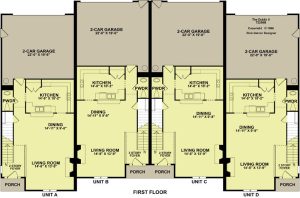

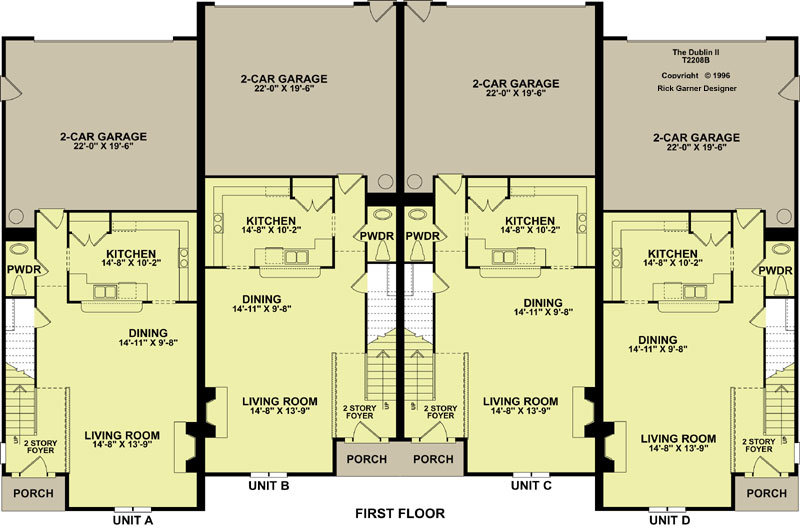

Floorplan 1
T2208-B
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
4 Unit Townhouse Design.
Notice: Single Use License Required Prior to Shipping.
*Ask about our Multifamily Developer Special Incentives.
Multi-Use License Available.
CAD Files Available Upon Purchase of Unlimited Use License. Call for Pricing. 877.737.5267
High Quality Artwork Provided With Each Purchase For Your Advertising and Marketing.
| Designer Plan Number | T2208-BT2208-B |
|---|---|
| Bedrooms Per Unit | 3 |
| Bathrooms per Unit | 2.5 |
| Plan Width | 91 ' 10 " |
| Plan Depth | 58 ' 8 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Roof Pitch | 7 in 12 |
| 2nd Roof Pitch | 9 in 12 |
|---|---|
| Building Floors | 2 |
| Unit Floors | 2 |
| First Floor Area | 759 sq.ft |
| 2nd Floor Area | 1072 sq.ft |
| Total Living Area | 759 sq.ft |
| Total Plan Area | 7328 sq.ft |
| Garage Bays Per unit | 2 |
| Garage Type | Attached |
