T2901-B
Four-unit townhouse plan featuring 3-bedroom, 1.5-bath residences, 1,504 sq. ft. per unit, attached garages, basements, and private rear decks.
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description

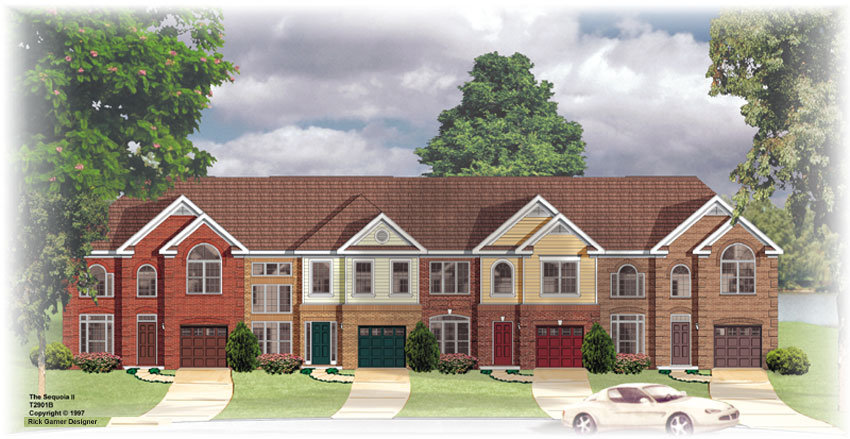

Positioned for attached rental housing, build-to-rent communities, or individually owned townhouse development, T2901-B delivers four three-bedroom residences in a two-story configuration totaling 6,016 square feet of living area. Each 1,504-square-foot unit incorporates a private entrance, dedicated one-car garage, standard basement, and rear patio or deck—attributes that strengthen residential identity and broaden everyday utility without requiring an oversized footprint. The repeated unit arrangement creates a clear, consistent building composition suited to builders and developers seeking a practical four-unit townhouse plan.

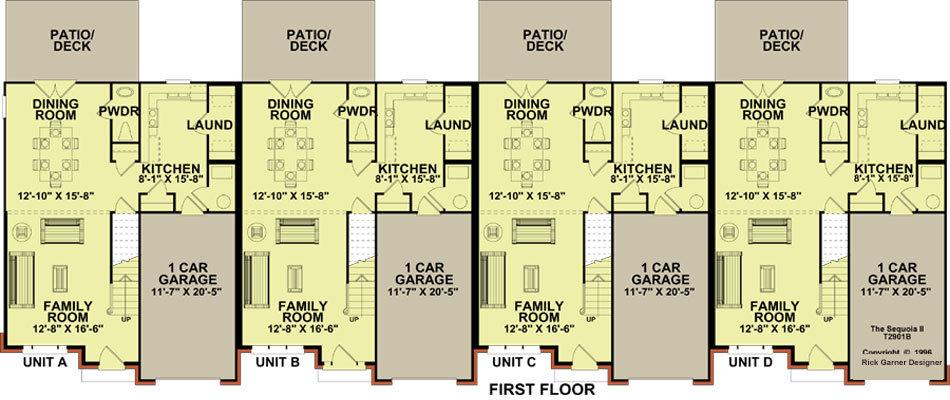

Organized for intuitive daily movement, the first floor connects the family room, dining area, kitchen, powder room, laundry, garage, and outdoor living area, while all three bedrooms and the full bath occupy the quieter upper level. Open-to-below space along the stair introduces visual connection between floors, and basement access expands each residence beyond its finished living area. Balancing resident privacy, functional circulation, private parking, and repeatable planning, T2901-B offers disciplined square-footage use and buildable value for multifamily development teams pursuing marketable attached housing plans.
Plan Highlights
- Four-unit attached townhouse plan
- Three bedrooms and 1½ baths per residence
- 774-square-foot first floor and 730-square-foot second floor per unit
- 1,504 square feet of living space per unit
- 6,016 square feet of total living area across the building

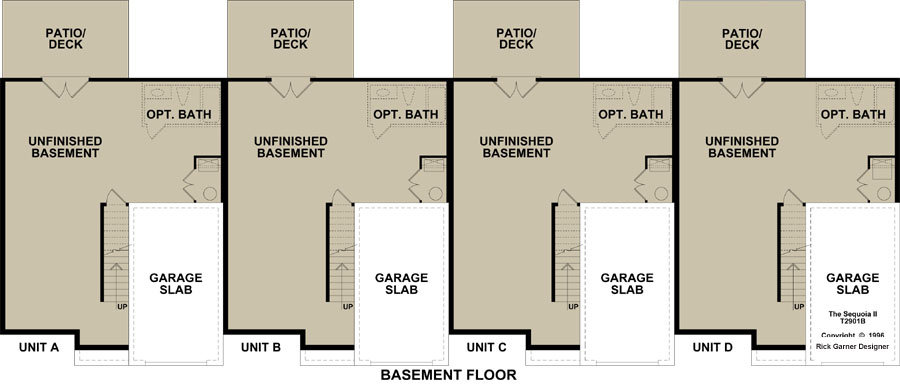

- Two-story residences organized over standard basements
- One-car attached garage dedicated to each residence
- Private front entry and rear patio/deck for every unit
- Main-level family room, dining room, kitchen, powder room, and laundry

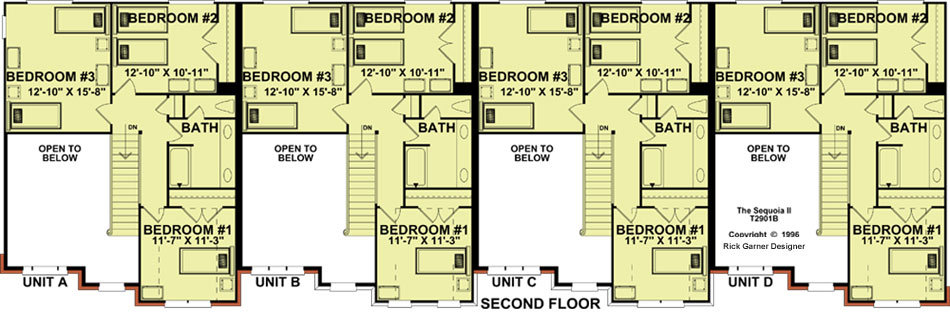

- Three bedrooms and one full bath positioned on the second floor
- 9-foot main-level ceiling height
- 117′-2″ building width, 37′-5″ building depth
- 8:12 roof pitch
Important Information
Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.
Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
| Designer Plan Number | T2901-B |
|---|---|
| Bedrooms Per Unit | 3 |
| Bathrooms per Unit | 1.5 |
| Plan Width | 117 ' 2 " |
| Plan Depth | 37 ' 5 " |
| Main Ceiling | 9 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Foundation Standard Basement | yes |
| Roof Pitch | 8 in 12 |
| Building Floors | 2 |
|---|---|
| Unit Floors | 2 |
| First Floor Area | 774 sq.ft |
| 2nd Floor Area | 730 sq.ft |
| Total Living Area | 1504 sq.ft |
| Total Plan Area | 6016 sq.ft |
| Garage Bays Per unit | 1 |
| Garage Type | Attached |
