Description
A thoughtfully designed three-unit townhouse plan, T5102i brings together the privacy and presence of a single-family residence with the efficiency and market appeal of a well-planned multifamily development. With generous interiors, attached garages, and a polished multi-gable exterior, this developer-friendly plan is designed to support strong rental appeal, owner-occupied opportunities, and long-term value in a variety of residential markets.

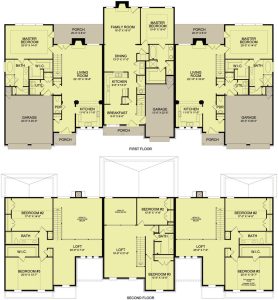

Each townhouse unit is arranged across two levels, creating a comfortable separation between everyday living areas and private bedroom spaces. The first floor provides substantial living space along with convenient access from the attached two-car garage, while the second floor accommodates the bedroom level for a more private residential experience. With three bedrooms and 2.5 baths per unit, the layout is well suited for families, professionals, and residents seeking more room than a typical apartment plan can offer.
The varied unit sizing gives the building an added layer of flexibility, with living areas ranging from approximately 2,009 to 2,275 square feet per residence. This allows the design to serve multiple buyer or renter preferences while maintaining a cohesive architectural identity across the entire building. The result is a townhouse plan that feels residential in scale while offering the practical density and income potential developers look for in multifamily plans.

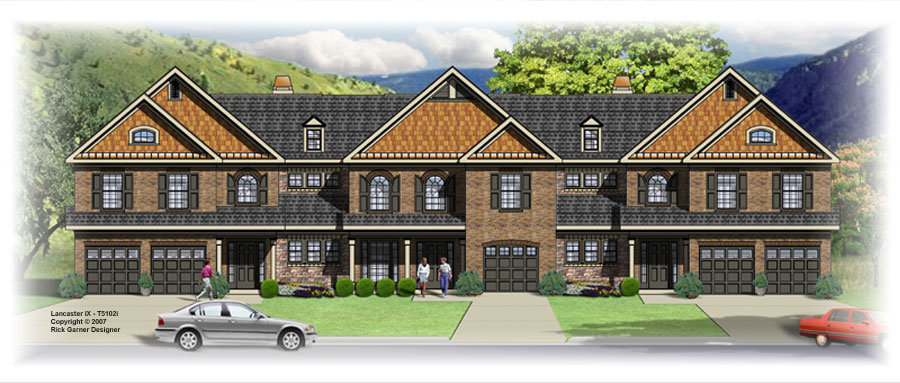

Attached two-car garages provide sheltered parking, additional storage potential, and a more desirable daily arrival experience for residents. Individual unit entries support privacy and autonomy, while the two-story configuration helps create a natural sense of separation from neighboring residences. The building’s 8:12 primary roof pitch and 10:12 secondary roof pitch add dimension and curb appeal, giving the exterior a substantial, established character that can be adapted to suit a variety of regional materials and market preferences.
Ideal for infill sites, growing neighborhoods, rental communities, and small-scale residential developments, this three-unit townhouse design offers an appealing balance of livability, efficient land use, and buildable value. It is a versatile addition to a collection of multifamily plans, townhouse plans, apartment plans, and developer-friendly residential design solutions.
Plan Highlights
- Three-unit townhouse building
- Three bedrooms and 2.5 baths per unit
- Two-story unit design
- Approximately 2,009 to 2,275 square feet of living area per unit
- Approximately 6,559 square feet of total building area
- Attached two-car garage configuration
- Building width: 109′-0″
- Building depth: 58′-9″
- 9-foot main ceiling height
- 8-foot secondary ceiling height
- 8:12 primary roof pitch
- 10:12 secondary roof pitch
- Designed for multifamily development, townhouse communities, rental properties, or owner-occupied investment opportunities
Important Information
- Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.
- Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
