The Westchester

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,650.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

The Westchester is everything you love about single-family living, doubled. This thoughtfully designed duplex features 3 bedrooms and 2 full baths per unit, spread out over a roomy 1,500+ sq. ft. layout. With soaring 9-foot ceilings, an open floorplan, and attached 2-car garages, each home feels private, spacious, and effortlessly livable.

Whether you’re imagining a cozy space for growing families, multi-generational living, or a high-potential rental property, The Westchester delivers versatility and charm in every detail. All on a low-maintenance slab foundation with a classic 6:12 roof pitch, this design brings both curb appeal and functional flow to life.

Designer Plan Number The Westchester
Bedrooms Per Unit 3
Bathrooms per Unit 2
Slab Foundation yes
Roof Pitch 6 in 12
Building Floors 1
Unit Floors 1
First Floor Area 1507 sq.ft
Total Living Area 1507 sq.ft
Total Plan Area 3026 sq.ft
Garage Bays Per unit 2
Garage Type Attached

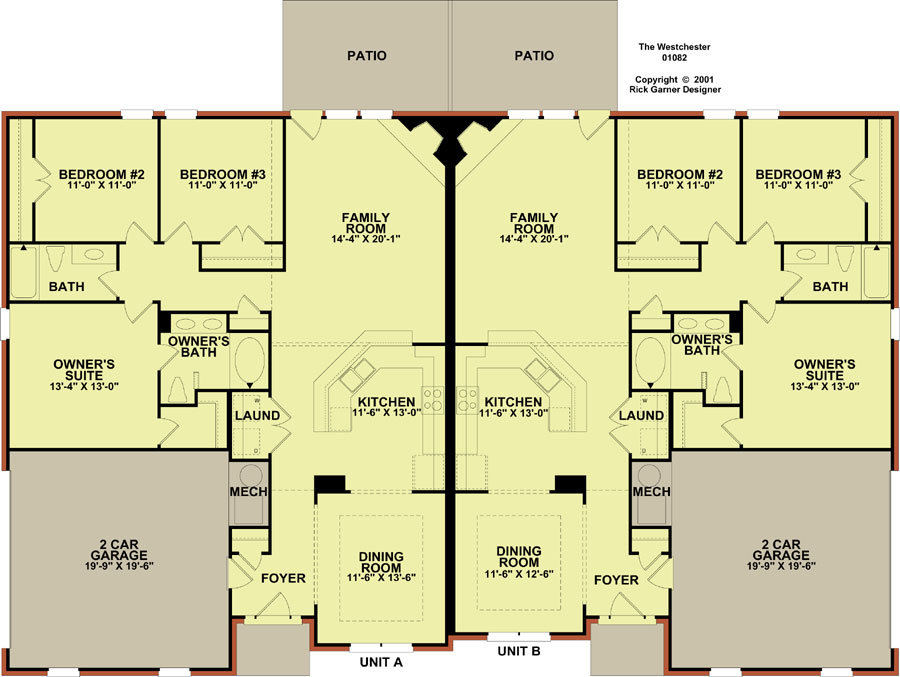

The Westchester Floorplan 1
