S4801b

S4801b

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,650.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

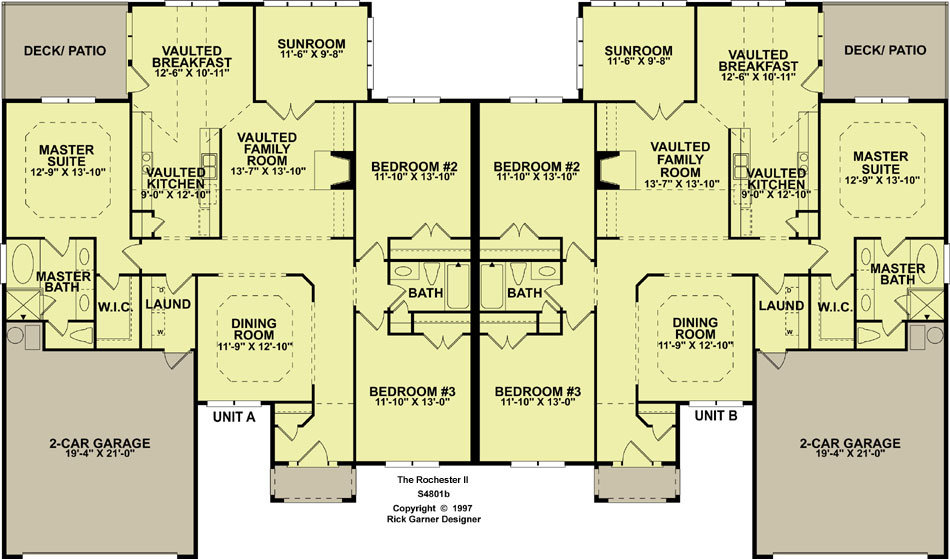

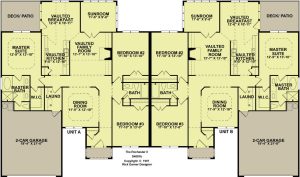

S4801b Floorplan 1

Description

The Rochester II

Designer Plan Number S4801bS4801b
Bedrooms Per Unit 3
Bathrooms per Unit 2
Plan Width 98 ' 0 "
Plan Depth 56 ' 0 "
Main Ceiling 9 ' 0 "
2nd Ceiling 0 ' 0 "
Slab Foundation yes
Roof Pitch 8 in 12
Building Floors 1
Unit Floors 1
First Floor Area 1674 sq.ft
Total Living Area 1674 sq.ft
Total Plan Area 3348 sq.ft
Garage Bays Per unit 2
Garage Type Attached
