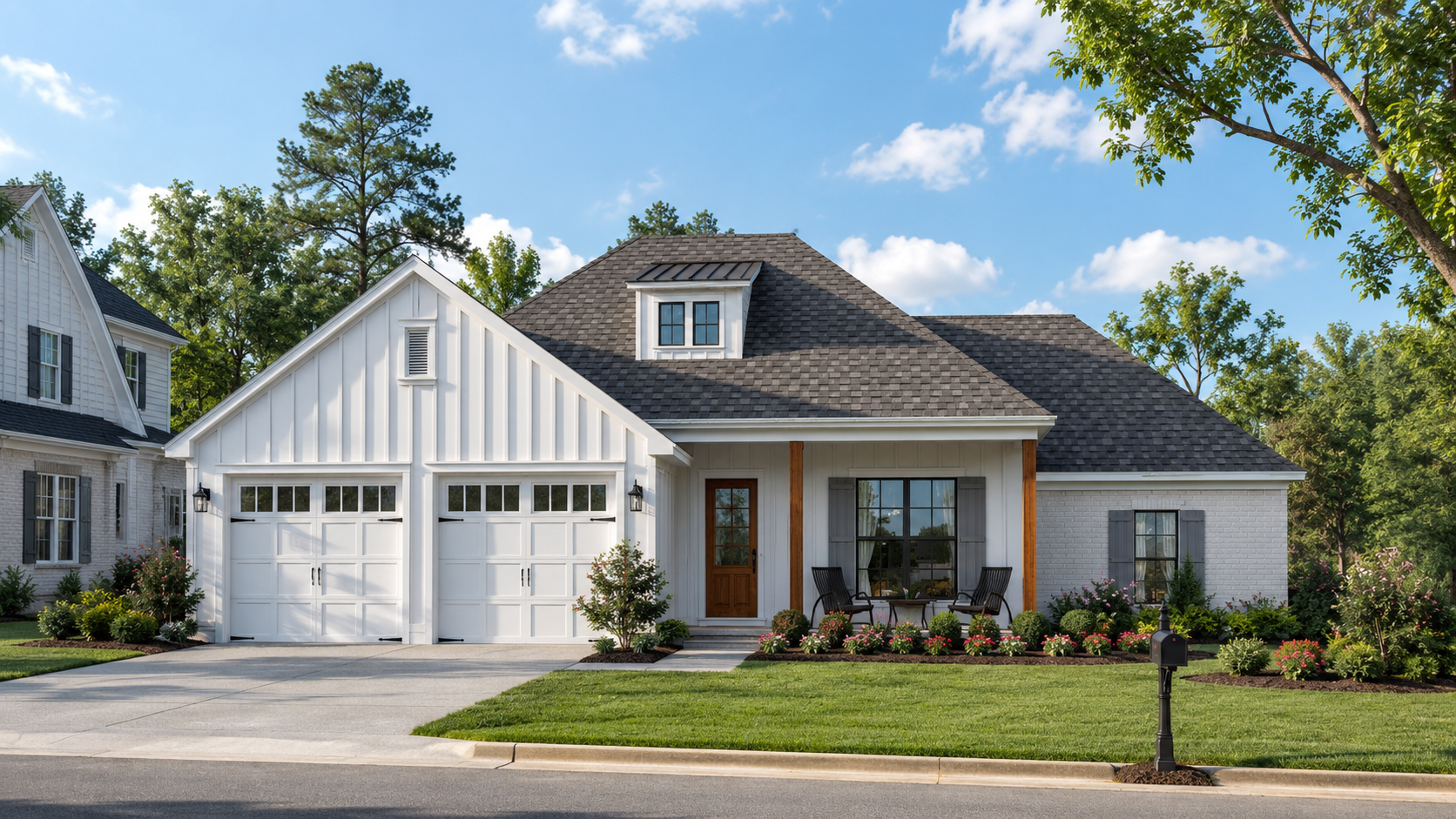

The Shelby III house plan rendering

Shelby III 1932

Modern farmhouse house plan featuring split-bedroom privacy, connected gathering spaces and covered porches; 3 bedrooms, 2 baths, 1,987 heated sq. ft.

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

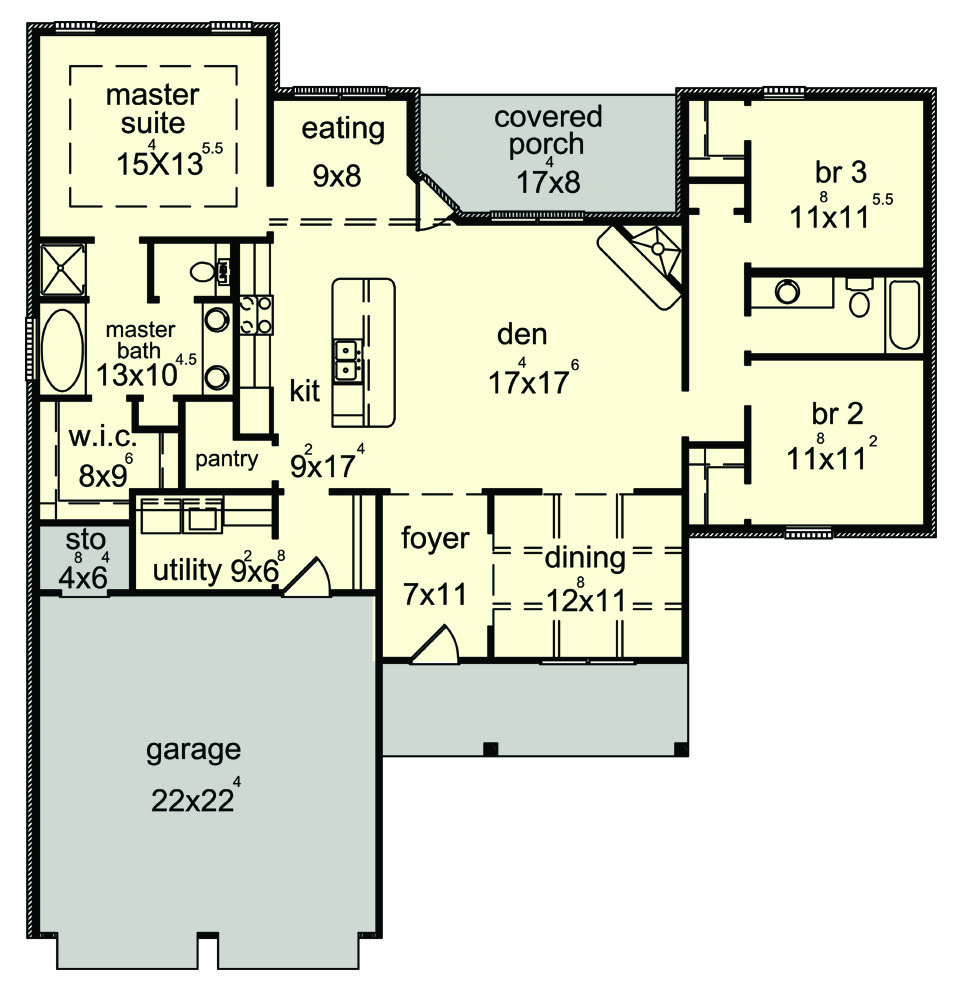

Shelby III 1932 Floorplan 1

Description

Quiet modern farmhouse character gives our Shelby III house plan an approachable street presence, pairing a broad front porch, crisp gable detailing, mixed exterior textures, and a restrained dormer above the main roofline. The foyer establishes a clear sense of arrival before opening toward the central den, where the kitchen, casual eating area, and covered rear porch create an easy rhythm between gathering, everyday meals, and outdoor living. A separate dining room remains visually connected to the heart of the home while retaining a more defined sense of place.

Privacy is organized naturally across the floor plan. The primary suite occupies its own side of the home near a generous bath and walk-in closet, while two secondary bedrooms share a separate wing and hall bath. Pantry, utility, and storage spaces sit close to the kitchen and garage entry, keeping everyday tasks efficient without interrupting the main living areas.

For professional builders, Shelby III reflects the value of residential design informed by generations of experience both in the field and at the drawing desk. That construction perspective shapes a floor plan that is straightforward to understand, and intentionally planned to minimize wasted circulation and underused space, supporting a more builder-friendly, cost-conscious approach to construction.

At the same time, the plan is organized around the qualities homeowners perceive every day: intuitive movement, clear transitions between gathering and private areas, visual connection through the main living spaces, and meaningful separation where privacy matters. Those neuroarchitecture principles are integrated into the planning rather than added as an afterthought, creating a home that builds logically, uses its footprint purposefully, and feels naturally comfortable to live in.

Plan Highlights
  • 3 bedrooms
  • 2 baths
  • 59′-8″ wide
  • 61′-3″ deep
  • 9′ main ceiling height with
  • 11′ and 12′ secondary ceiling heights
  •  8 in 12 roof pitch
  • 1,987 heated square feet
  • 2,858 total square feet
  • Modern farmhouse exterior character
  • Single-story floor plan organized around a central gathering space
  • Split-bedroom layout
  • Kitchen featuring a center island, adjoining eating area, and nearby pantry
  • Central den connects naturally to the kitchen, dining room, and covered rear porch
  • Private primary suite includes a 13′ x 10′ bath and 8′ x 9′ walk-in closet
  • Two secondary bedrooms share a conveniently positioned hall bath
  • Dedicated utility room and additional storage positioned near the attached garage
  • Front-entry attached 2-car garage

Important Information

Modifications Available. Thoughtful adjustments can help tailor this plan to your land, lifestyle, and building requirements. Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.

Designer Plan Number Shelby III 1932
Bedrooms 3
Bathrooms 2
Plan Width 59 ' 8 "
Plan Depth 61 ' 3 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab Yes
foundation Crawl Space Yes
Foundation Basement Additional Yes
Roof Pitch 8 in 12
Floors 1
First Floor Area 1987 sq.ft
Area Heated 1987 sq.ft
Total Living Area 1987 sq.ft
Total Plan Area 2858 sq.ft
Garage Bays 2
Garage Type Attached
