T2205-A

Description

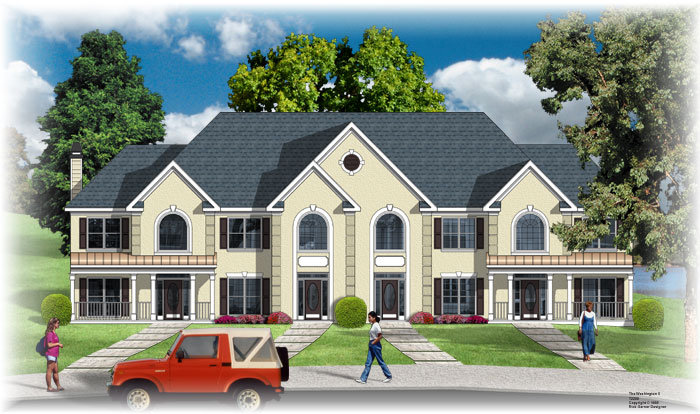

Defined by balanced traditional architecture and a composed rhythm of private covered entries, this four-unit townhouse design brings individual residential character to an efficient attached-housing format. Each two-story residence offers three bedrooms, two-and-a-half baths, and approximately 1,710 to 1,726 square feet, creating a substantial rental or ownership product suited to developments where livability and curb appeal carry equal weight. The symmetrical exterior establishes a cohesive building presence, while distinct entrances give every unit a stronger sense of identity and arrival.

Interior planning separates active gathering spaces from quieter private rooms, supporting the natural rhythm of daily life. The main level brings the foyer, family room, dining area, kitchen, powder room, and laundry functions together in a practical sequence, while all three bedrooms are positioned upstairs. Primary suites feature private baths and walk-in closets, and secondary bedrooms share a centrally located hall bath. Repeated unit layouts, slab construction, nine-foot main-level ceilings, and direct front and rear access contribute to straightforward building logic, disciplined square-footage use, and lasting resident appeal for townhouse and multifamily development.

Plan Highlights

• Four attached townhouse residences
• Three bedrooms and two-and-a-half baths per residence
• Approximately 1,710 to 1,726 square feet per residence

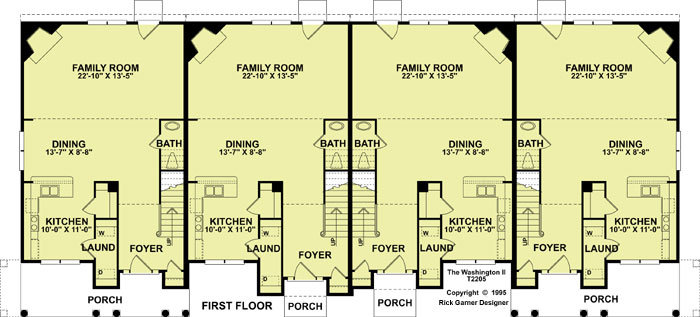

• First-floor areas ranging from 856 to 863 square feet per unit

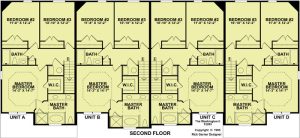

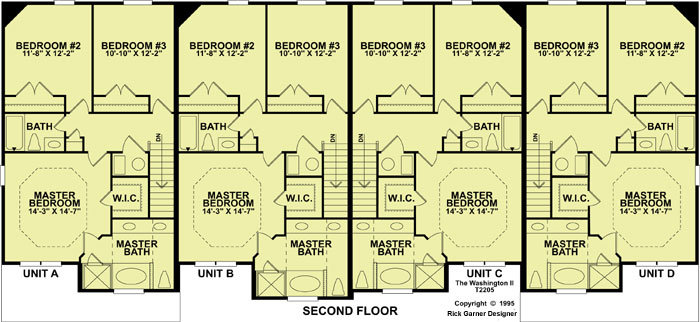

• Second-floor areas ranging from 854 to 863 square feet per unit
• 6,872 square feet of total building area
• Building dimensions of 94′-3″ wide by 39′- 4″ deep
• 9′ main-level ceiling height
• Primary roof pitch of 7:12
• Secondary roof pitch of 10:12
• Individual covered front porches and clearly defined private entries
• Slab foundation and no garage bays
• First-floor living, dining, kitchen, laundry, and powder-room functions; second-floor bedroom zones featuring primary suites, walk-in closets, and shared hall baths

Important Information

Modifications Available. Thoughtful adjustments can help tailor this plan to your project, market, and building requirements.

Due to variations in soil conditions, climate, local codes, and site requirements, these construction documents are not engineered or sealed by an architect. Local professional review may be required before construction.
